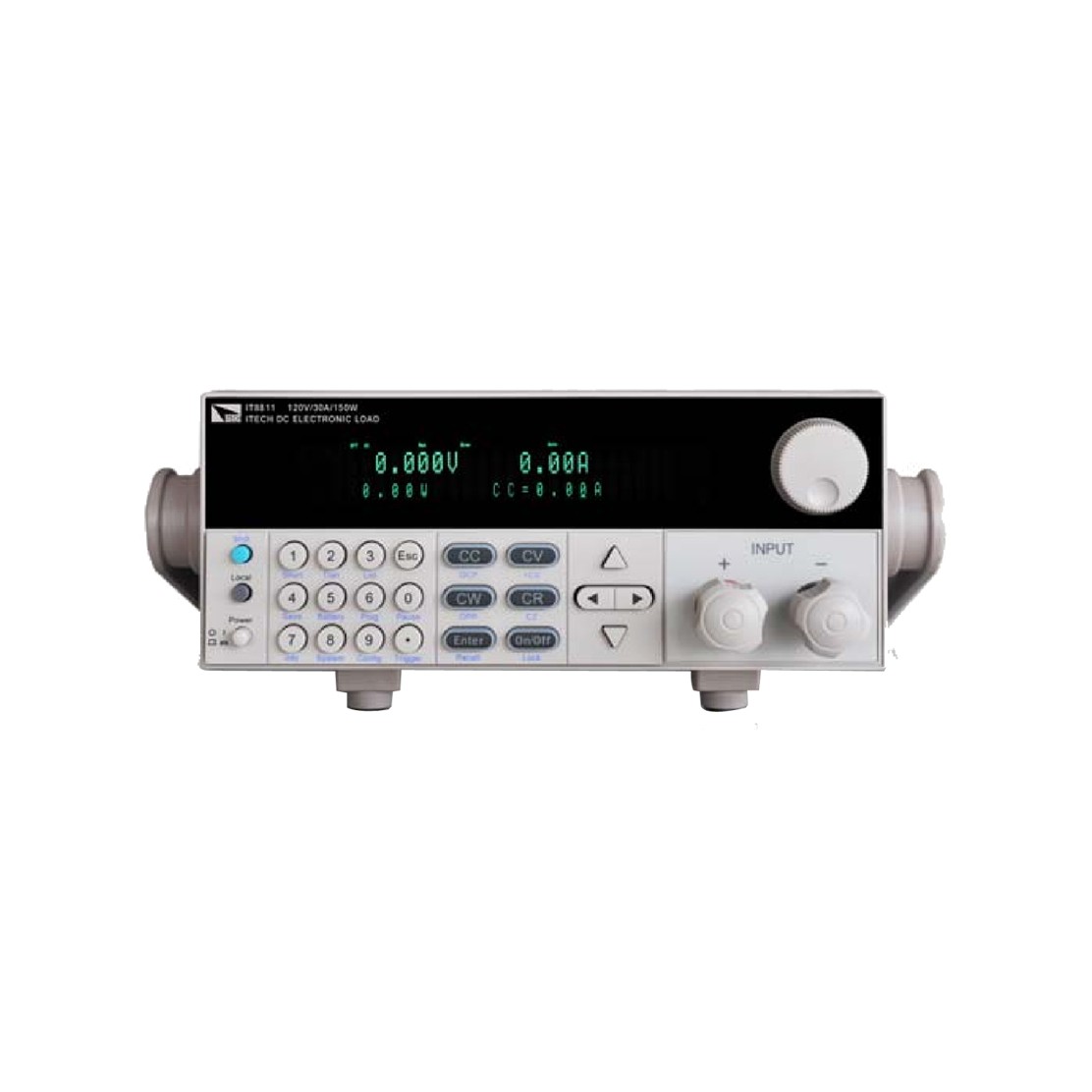

IT8500+ Series DC Electronic Load

IT8500+ series is a single-channel programmable electronic load.With power ranges from 150W to 1500W.The user can perform online voltage measurements and adjustments or simulate short circuit test using the simple keypad on the front panel.It also offers a full-featured battery mode for discharging test.IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies,batteries,DC-DC converters ,battery chargers,provides user the best testing solution.

Characteristics

○ CC/CV/CR/CW operating modes high resolution of 0.1 mV and 0.1 mA;

○ Transient mode up to 10 kHz;

○ Up to 40KHZ measurement speed of voltage and current;

○ List mode– minimum 50us step width with 84 user programmable steps;

○ Adjustable slew rate in CC mode;

○ Professional battery mode;

○ Automatic test function;

○ Short mode;

○ 100 memory areas to save/recall setting parameters;

○ OCP and OPP mode to test the over current and over power points;

○ OVP/OCP/OPP/OTP and reverse voltage protection.
