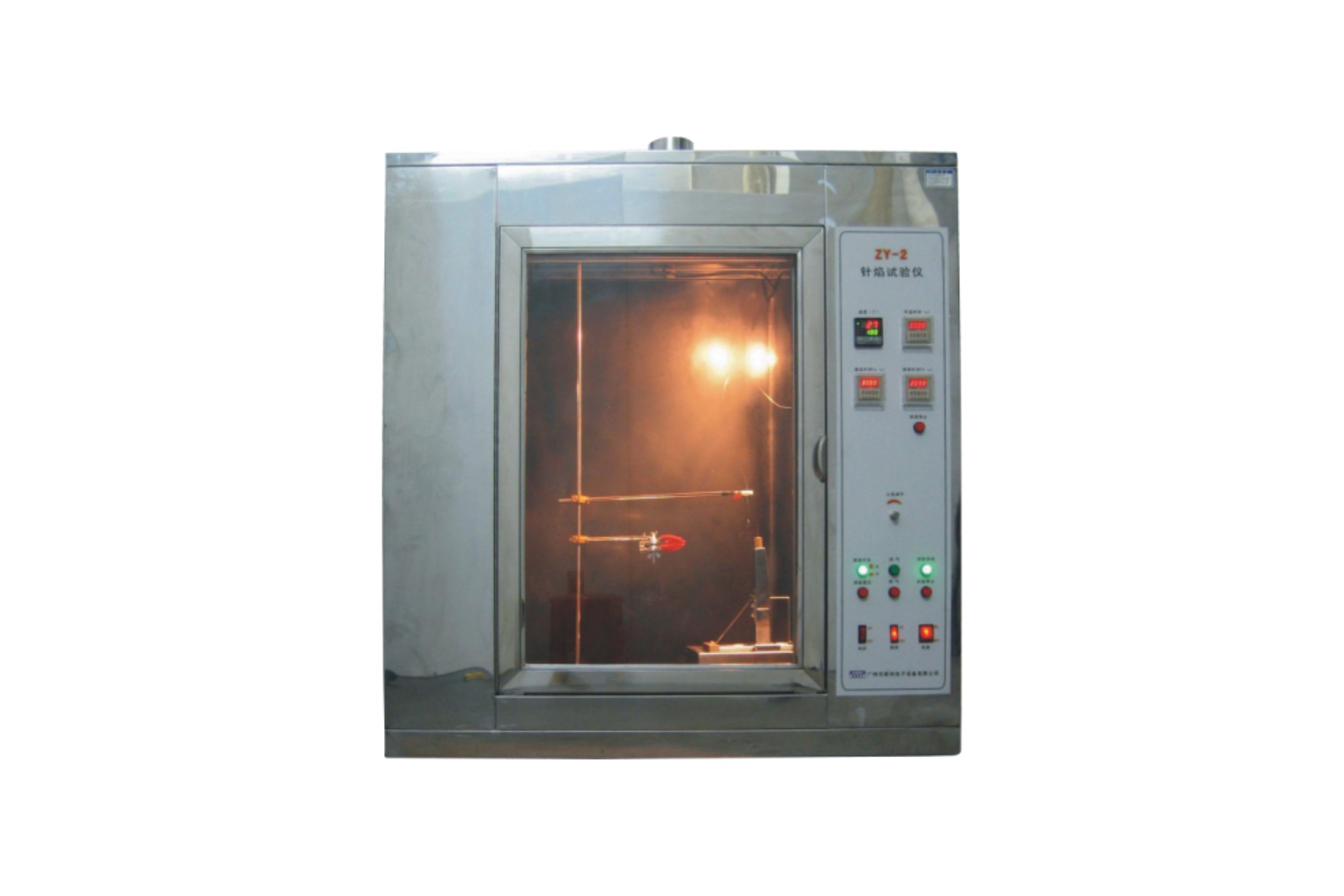

Needle Flame Tester

Application

It`s use to the component's study, production of lighting instrument, hypopiesis electrical apparatus, domestic appliance,machine electric appliance, electrical machine power tool, electronic instrument electrician  instrument technique  equipment. Also, it is fit for the industry of insulation material, engineering plastics and solid combustible material.

Standard

Needle flame test is an emulational test program ordained by the standard of IEC60695 ,GB/T5169.5,GB4706.1.

Characteristics

○ Angle of burner: incline with45°(when in test)or plumb(adjust the flame height).

○ Time of start burning:0~999.9s±0.1s adjustable(30s in genaral).

○ Time of keep burning:0~999.9s±0.1s,auto mark,pause with hand.

○ Height of frame:12mm±1mm(test tool with height).

○ Test range of temperature: 0~1000℃.

○ Requirement of flame’s temperature: within 23.5 second s(±1second).

○ when thetemperature rise from 100℃(±2℃)to 700℃(±3℃).

○ Temperature testing thermocouple:Φ0.5mm armoured(K pattern)the rmocouple.

○ Flame gas: 95% butane.

○ Studio volume: 0.5m³.
