UV200Z multiband luminometer is suitable for test of sterilization, photoetching, water treatment, breeding, etc.
UV stray light
UV254 :< 0.2% UV365 :< 0.02%
>UV stray light：UV254 :< 0.2% UV365 :< 0.02%
>Mesurable range：1μW/cm2—1999.9×103μW/cm2
>Accuracy：±5%
>Rated working condition：temperature：25±5℃
humidity：≤85%R.H
power supply：AC 220V±10V，50Hz±1Hz
>Allowable working condition：temperature：0-40℃
humidity：≤90%R.H
power supply：AC 220V±10%，50/60Hz
>Storage condition：temperature：-20～50℃
humidity＜90%R.H
Wide testing range, auto range switch
Zero point stability, 5 digits display with high accuracy and stability
All the data scaling can be operated by user through the instrument panel keyboard
RS-232C serial communicating port, convenient to communicate with PC (Option)

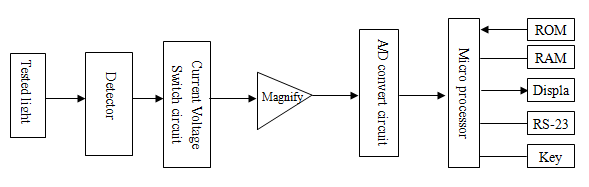

During the test, user can adopt different detector according to different wave band. The tested UV signal is received by detector and changed into electric current. Electric current is changed into voltage signal and magnified. Then, it is changed into digital quantity through modulus and read by microprocessor. The read data is multiply with scaling index, and the tested result is worked out. Picture 2 is the principle diagram.
UV200Z multiband luminometer is suitable for test of sterilization, photoetching, water treatment, breeding, etc.
