Used to measure relative spectral power distribution of UV light source, peak wavelength, half width, spectral radiation flux of UVA \ UVB \ UVC bands, total radiation flux in specific bands and other parameters. It is applicable to UV light source manufacturers, UV standard detection or metering organizations, optical radiation safety measurement, teaching and scientific research.
CMS-3000S Ultraviolet radiation flux test system consists of CMS-3000S UV spectrophotocolorimeter, UV optical fiber, UV integrating sphere, power source and Deuterium lamp, which is used to test the Coordinate ,Wavelength, Relative spectral power distribution，Ultraviolet radiation flux.

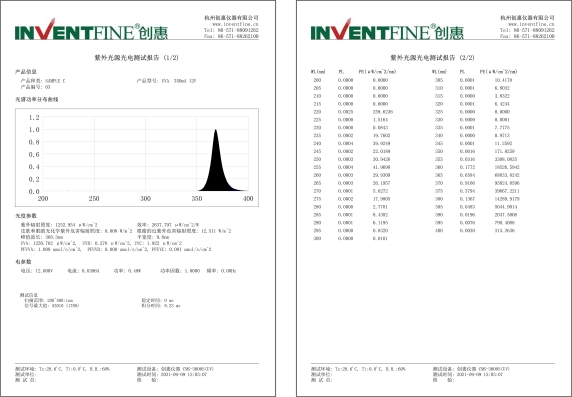

Test parameters
1) Relative UV spectral power distribution：P(λ)
2) Ultraviolet radiation flux，UVA (A-band radiation flux),UVB (B-band radiation flux),UVC(C-band radiation flux)
3) Peak wavelength, half width
4) Ambient temperature
> Wavelength range:200nm~400nm
> Wavelength accuracy: ±0.2nm repeatability: ±0.1nm
> Ultraviolet irradiance linearity: ±0.5%
> Ultraviolet irradiance accuracy: Class 1
Ultraviolet radiation flux ， UVA (A-Band Ultraviolet radiation flux), UVB (B-band Ultraviolet radiation flux), UVC (C-band Ultraviolet radiation flux)
It is applicable to UV light source manufacturers, UV standard detection or metering organizations, optical radiation safety measurement, teaching and scientific research.
